📦 Product

Product ID	737

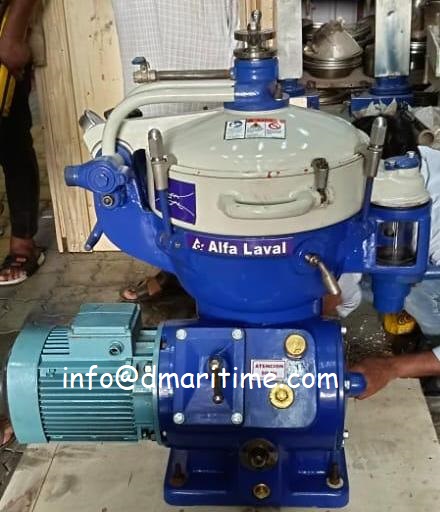

Brand	alfa laval mab 206
Partmark	4010400

🏭 Seller

Company	Dolphin Maritime Service
Seller User	dmaritime2

💰 Commercial

Seller Cost	Login required
Tax %	18.00
HSN Code	842139
SKU Summary	The Alfa Laval MAB 206 is a high-speed, solids-retaining disc-stack centrifuge used to efficiently clean and separate fuel, lubrication, and hydraulic oils from water and particulate sludge. It handles capacities up to 10.6 m³/h and is favored for marine and industrial settings.Key Technical SpecificationsCapacity: Max throughput of up to 10.6 m³/h (approx. 46 GPM) depending on the oil's viscosity and composition.Bowl Speed: 6,400 RPM, generating a centrifugal force up to 4,000 G.Sludge Space: 3.4 Liters (solid-wall, manually cleaned).Operating Temperature: 0 °C to 100 °C (32 °F to 212 °F).Motor Power: 5.5 kW (standard) up to 12 kW (with built-on feed pump).Voltage/Frequency: Typically 380–415V / 50Hz or 460V / 60Hz.Physical & Utility DetailsDimensions: Approximately 600 mm × 500 mm × 800 mm (Length × Width × Height).Weight: Net weight ≈ 420 kg (926 lbs.); Gross shipping weight ≈ 525 kg (1,157 lbs.).Noise Level: \(75 \text{ dB(A)}\).Materials: Stainless steel bowl, aluminum frame/body,

🚚 Logistics

Stock Item	Yes
Country of Origin	India
Delivery (weeks)	1
Warranty (weeks)	6

🧪 Technical Specs

Key Technical Specification 1	Dimensions: Approximately 600 mm × 500 mm × 800 mm (Length × Width × Height).Weight: Net weight ≈ 42
Key Technical Specification 2	Capacity: Max throughput of up to 10.6 m³/h (approx. 46 GPM) depending on the oil's viscosity and co
Key Product Benefit / Advantage	—

📎 Files

Datasheet	View Datasheet
Image	View Image

🖼️ SKU Images

🕒 Creation Details

Created By	Seller
Created On	July 1, 2026, 10:04 a.m.
Verified	Yes
